Data appended to errors

Up to four data fields can be appended to an error and are written to the error-log. This is useful for example to store the actual current in case of an overcurrent error. Data can be appended to predefined errors and to direct called errors (see page Definition and raise of errors in source code).

To raise an error with data directly, the functions SetErrorData1 to SetErrorData4 can be used (for one to four data fields). The data is appended as parameter to these macros.

Example:

uint32_t ADC_Number = 3;
//Set Error 3
SetErrorData1(SampleErrorID_3,                                      // Error-ID
    DEVELOPER_RESET | PROFESSIONAL_RESET | USER_RESET | PLC_RESET,  // Flags
    NoOnErrorReaction,                                              // Function to be called on first time setting the error
    NoOnErrorResetReaction,                                         // Function to be called on resetting the error
    "Test Error 3 Data: %u",                                        // Short Description
    "DOC_E ADC %u peripheral internal error (problem of clocking, enable/disable, erroneous state).",
    ADC_Number);

The appended data ADC_Number is shown in the error-text in the errorlist or/and in the helptext of the error. It is included into these texts with a printf syntax known from the programming language c.

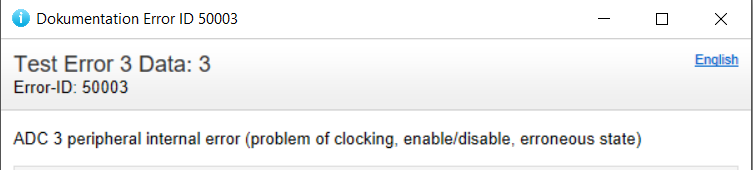

Helptext tof this error:

Errors with compare function to update the data attached to the error

In some cases an error can be raised several times, for example if a value is checked regularly against a limit. In this case it can be useful to store the maximum or minimum of a data value. In the following example an overvoltage is checked in control task. The maximum voltage is stored in the error data.

//Example of data compare function
    float fVoltage5V = 5.1f;
    for (int i=0; i<10; i++)
    {
        if (fVoltage5V <= 5.5f) {fVoltage5V+=0.1f;}
        //Set Error 4
        SetErrorData1Compare(SampleErrorID_4,                               // Error-ID
            DEVELOPER_RESET | PROFESSIONAL_RESET | USER_RESET | PLC_RESET,  // Flags
            NoOnErrorReaction,                                              // Function to be called on first time setting the error
            NoOnErrorResetReaction,                                         // Function to be called on resetting the error
            "Test Error 4",                                                 // Short Description
            "DOC_D Die 5V Versorgungsspannung war zu hoch. Zulässig sind +5%.<br>gemessener Maximalwert: %.2fV"\
            "DOC_E The 5V Supply Voltage was to high. Allowed are +5%.<br>measured Maximum value: %.2fV",\
            fVoltage5V, MaxFloat);
    }

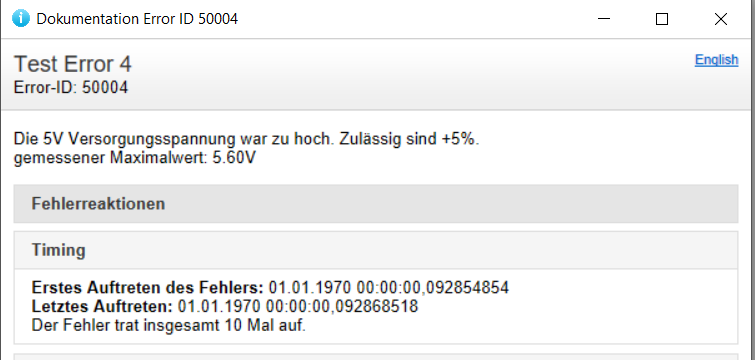

In this example the measured value is only displayed in helptext. Error-log:

The number of errors and first and last timestamp are also displayed.

The compare-function can be one of the following predefined functions:

• MaxFloat - Maximum of a floating point variable
• MinFloat - Minimum of a floating point variable
• MaxAbsFloat - Absolute maximum of a floating point variable
• MaxInt - Maximum of an integer variable
• MinInt - Minimum of an integer variable
• MaxUInt - Maximum of an unsigned integer variable
• MinUInt - Minimum of an unsigned integer variable
• NoDataUpdate - No update will be performed, the first value is stored. This is useful if mor than one variable is stored, and not every variable has to be updated.
